Cooler Master CMP 520 - ARGB Mid-Tower ATX Gaming Case

The Cooler Master CMP 520 ARGB gaming case was designed to combine style and performance for gaming setups. Its black steel and plastic exterior, along with a tempered glass side panel, offers a refined look while showcasing internal components.

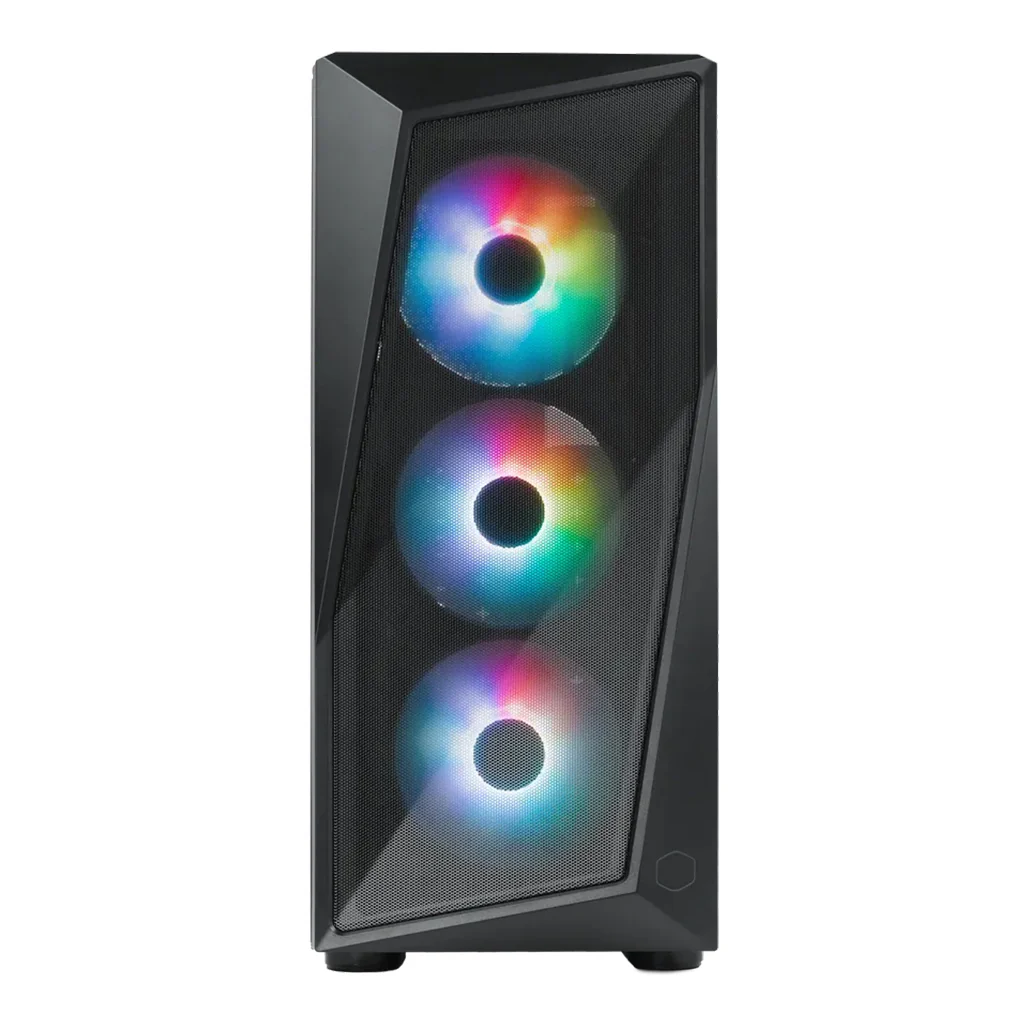

Three pre-installed CF120 ARGB fans at the front provide dynamic lighting and enhanced cooling. Additional fan and radiator support allows for further thermal management, with space for up to a 280mm radiator at the front and a 240mm unit at the top. Optimized airflow ensures stability under demanding gaming conditions.

This mid-tower case supports ATX, Micro-ATX, and Mini-ITX motherboards, making it suitable for a range of builds. Storage flexibility is ensured with two combo drive bays for 2.5"/3.5" drives and two dedicated 2.5" SSD mounts.

A front I/O panel with a USB 3.2 Gen 1 Type-A port, a USB 2.0 port, and a 3.5mm headset jack offers convenient connectivity. Cable management is simplified with an 18.5mm routing space, contributing to an organized build and improved airflow.

With support for GPUs up to 350mm in length and CPU coolers up to 161mm in height, the CMP 520 is engineered for high-performance gaming setups. Top and bottom dust filters enhance long-term maintenance, ensuring a clean and efficient system.

Specifications:

• Model Number: CP520-KGNN-S00
• Exterior Color: Black
• Materials: Steel, Plastic
• Side Panel: Tempered Glass
• Dimensions (L x W x H):
  • 439 x 204 x 463mm (Incl. Protrusions)
  • 432 x 204 x 448mm (Excl. Protrusions)
• Volume: 41.34L (Excl. Protrusions)
• Motherboard Support: ATX, Micro-ATX, Mini-ITX
• Expansion Slots: 7
• Drive Bays:
  • 2x 2.5"/3.5" combo
  • 2x 2.5" SSD
• Front I/O Panel:
  • 1x USB 3.2 Gen 1 Type-A
  • 1x USB 2.0
  • 1x 3.5mm headset jack (Audio+Mic)
• ARGB Controller: ARGB Fans Hub
• Pre-installed Fans:
  • Front: 3x CF120 ARGB
  • Rear: N/A
  • Top: N/A
• Fan Support:
  • Top: 2x 120mm / 2x 140mm
  • Front: 3x 120mm / 2x 140mm
  • Rear: 1x 120mm
• Radiator Support:
  • Top: 120mm / 240mm (RAM height below 35mm)
  • Front: 120mm / 140mm / 240mm / 280mm
  • Rear: 120mm
• Clearances:
  • CPU Cooler Height: 161mm
  • GPU Length: 350mm (without front fans & radiator)
  • PSU Length: 160mm
• Cable Routing Clearance: 18.5mm
• Dust Filters: Top, Bottom
• Power Supply Support: Bottom Mount, ATX
• Warranty: 2 years
• Form Factor: Mid Tower
• Series: CMP Series
