Bose DesignMax DM3P Pendant Loudspeakers (Pair)

Designed for exceptional clarity and sleek aesthetics, the Bose DesignMax DM3P pendant loudspeakers offer a premium commercial sound solution ideal for retail stores, restaurants, hospitality venues, and office spaces. These 30-watt pendant speakers deliver full-range audio with crisp highs and an extended low-frequency response uncommon for their compact size. Featuring a coaxial two-way configuration with a 3.25-inch woofer and a 0.75-inch neodymium tweeter, the DM3P provides wide 130° conical coverage, ensuring consistent audio performance throughout the room.

With elegant black or white finishes, a recessed single-point suspension system, and removable logos, the DM3P speakers blend seamlessly into modern interior designs. Installation is streamlined using industry-standard Euroblock connectors, and optional integration with Bose Professional DSPs unlocks SmartBass processing and optimized EQ for enhanced output at any volume. Perfect for new builds or upgrades in commercial sound systems, the DesignMax DM3P combines audio fidelity with refined appearance and installation flexibility.

Key Features:

• Coaxial Two-Way Design:
  Delivers detailed high frequencies and surprising low-end response for a compact enclosure. This eliminates the need for external DSP or EQ, though optional Bose DSPs further enhance performance.

• Dispersion Alignment System:
  Ensures uniform sound distribution by aligning woofer and tweeter coverage, creating balanced audio throughout the space.

• Pendant Suspension Design:

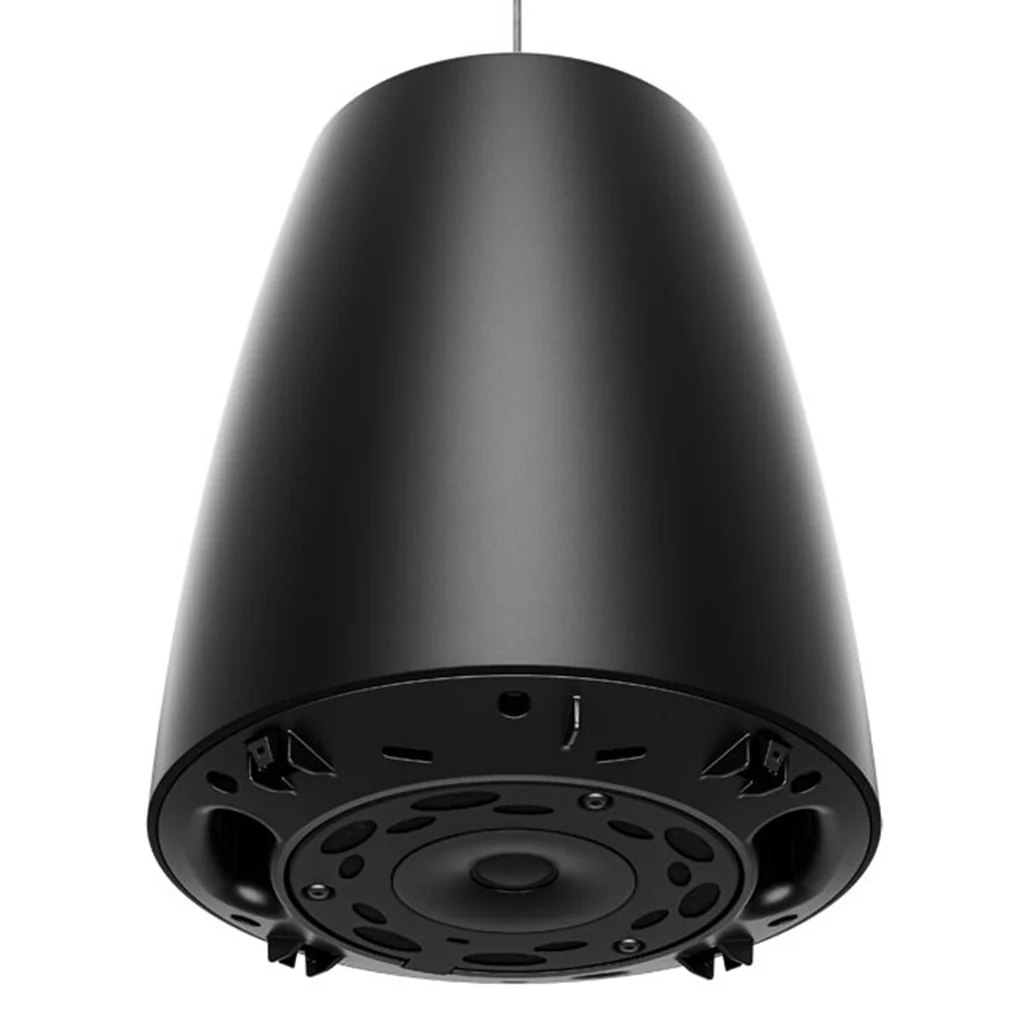

  Uses a discreet recessed single-point mounting system, hiding hardware and allowing for a clean, architectural finish.

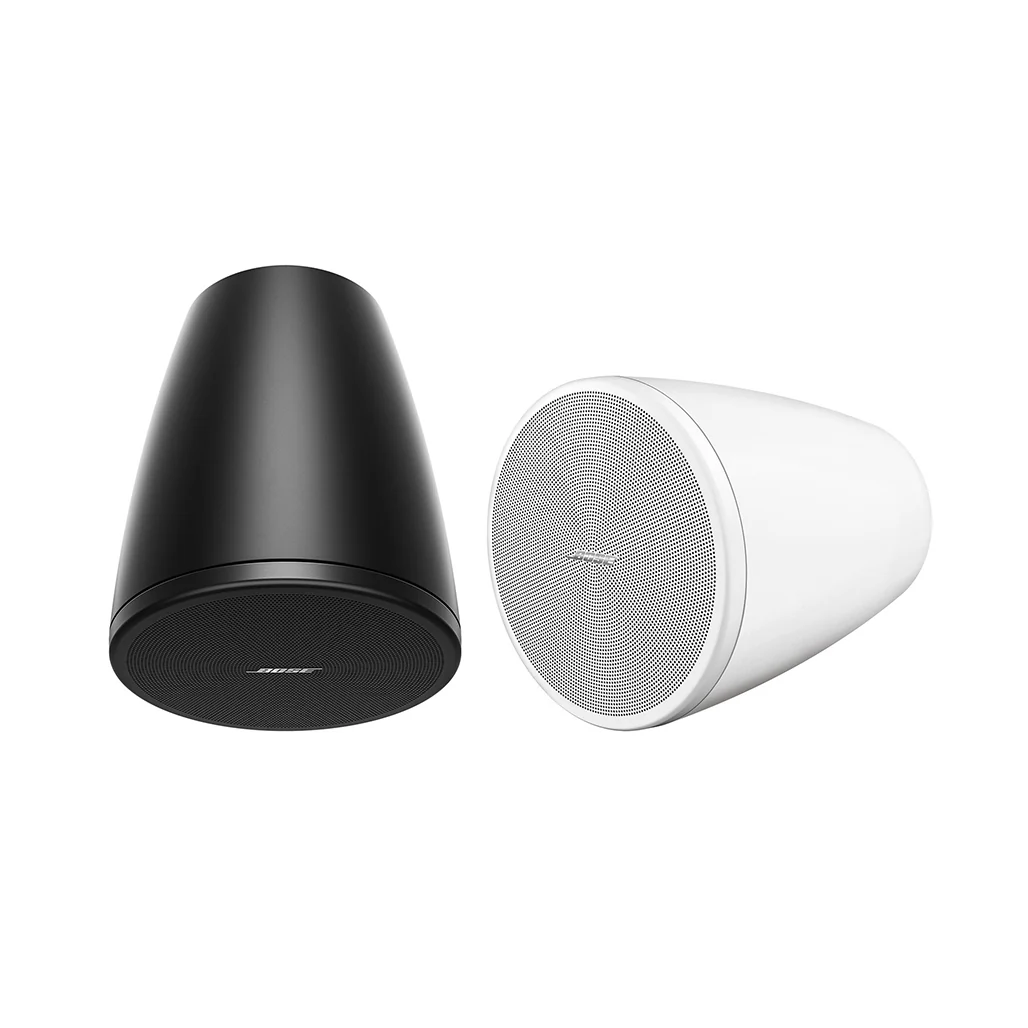

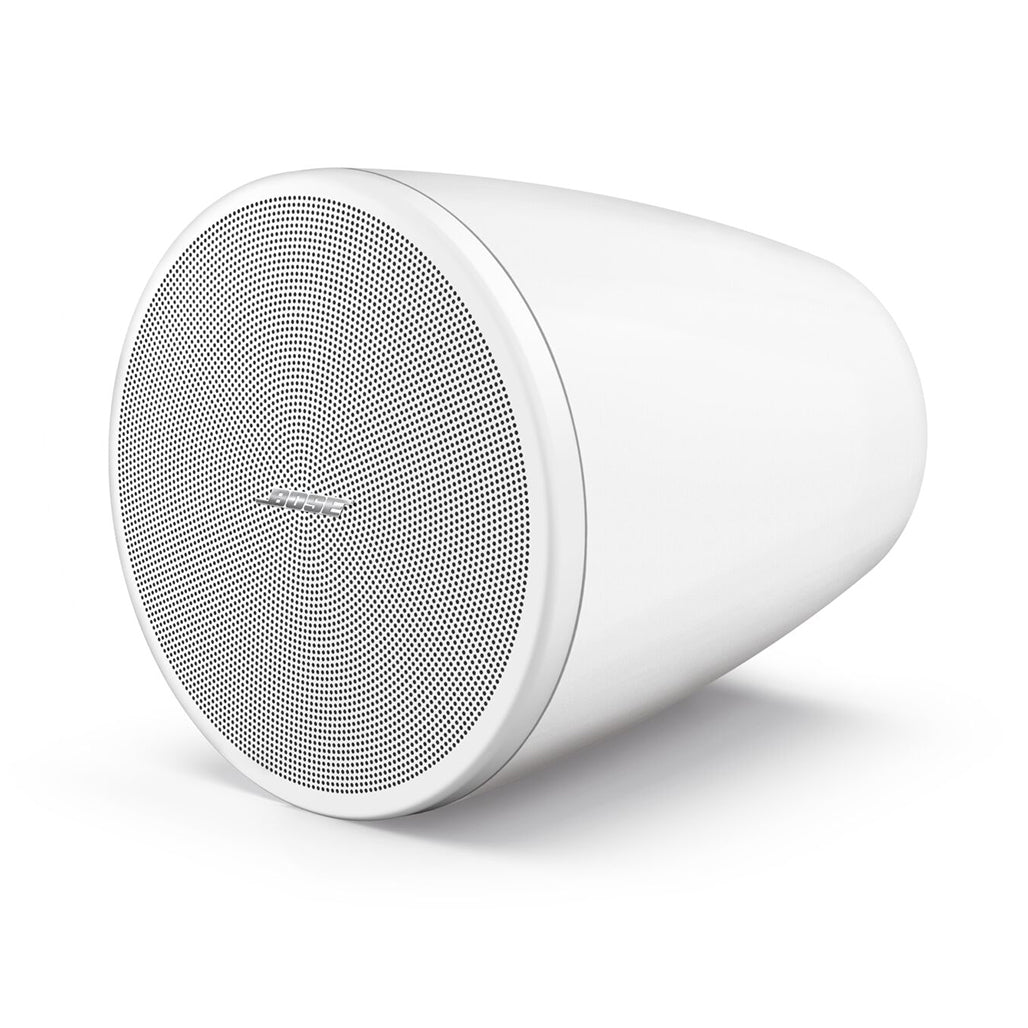

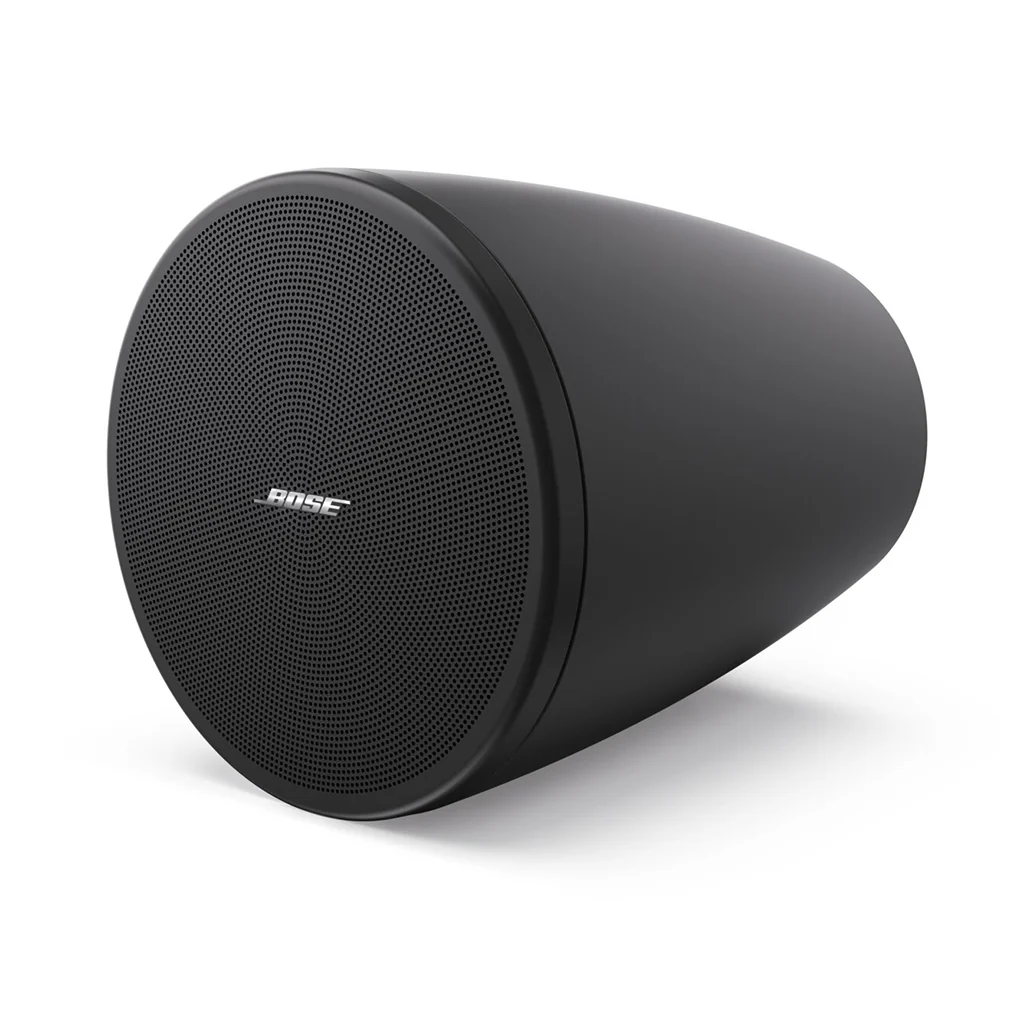

• Elegant Aesthetics:
  Features paintable black or white enclosures and perforated steel grilles with removable, rotatable logos to match any commercial interior.

• Flexible Mounting Options:
  Compatible with a variety of industry-standard installation accessories, making setup straightforward and efficient.

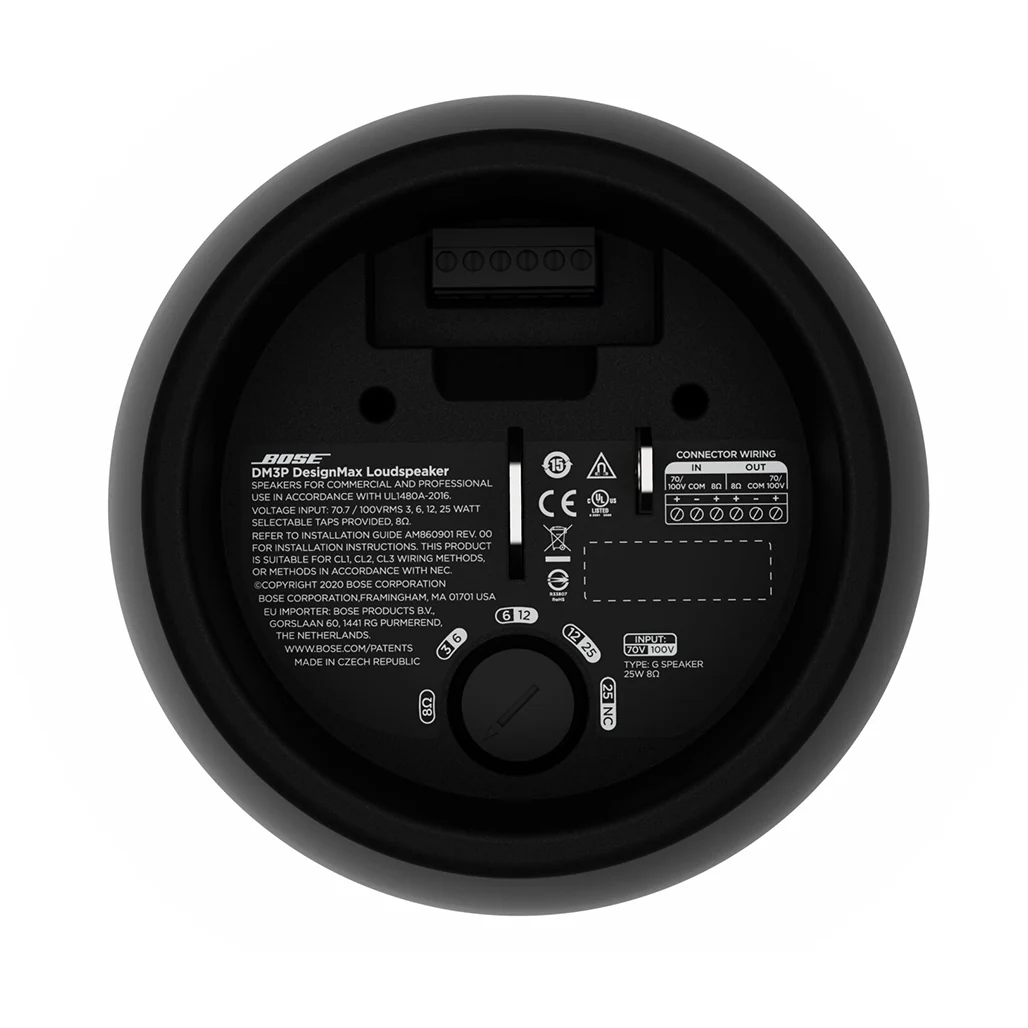

• Versatile Power Taps and Impedance Settings:
  Supports both low-impedance (8Ω) and high-impedance (70V/100V) systems with multiple transformer tap settings for scalable deployment.

• Reliable Performance:
  Engineered for indoor use, with a passive 2-way crossover at 1.7 kHz and high-pass protection, ensuring durability and long-term audio fidelity.

Technical Specifications:

Compliance:

• UL 1480A

• UL 2239 for suspension cable

• NFPA 70 & NFPA 90A

• CE-compliant

Physical Specifications:

• Color Options: Black (RAL 9005) or White (RAL 9003), both paintable

• Enclosure: Engineered plastics

• Grille: Powder-coated perforated steel

• Logo: Removable and rotatable

• Mounting: 1 suspension and 1 safety cable attachment point

• Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)

• Dimensions: 8.2 in × 9.8 in (207 mm × 248 mm)

• Suspension Cable: 15 ft × 0.1 in (4.6 m × 2 mm)

• Weight: 5.5 lb (2.5 kg) per unit; 15.4 lb (7.0 kg) per pair (shipping)

Performance:

• Frequency Range (-10 dB): 75 Hz – 20 kHz

• Coverage: 130° conical (horizontal and vertical)

• Max SPL @ 1 m: 99 dB

• Nominal Impedance: 8 Ω

• Continuous Power Handling: 25 W

• Peak Power Handling: 100 W

• Sensitivity: 84 dB SPL (1 W @ 1 m)

• Recommended Signal Processing: Not required, Bose EQ and SmartBass available

• Transformer Taps (100V): 6, 12, 25 W, bypass

• Transformer Taps (70V): 3, 6, 12, 25 W, bypass

Transducers:

• Crossover: 1.7 kHz passive 2-way

• Driver Protection: Recommended 80 Hz high-pass filter (24 dB/octave)

• Tweeter: 0.75 in (20 mm) neodymium dome, coaxially mounted

• Woofer: 3.25 in (83 mm)

Conclusion:
The Bose DesignMax DM3P pendant loudspeakers provide a refined, easy-to-install audio solution that enhances any indoor commercial environment with quality sound and contemporary style. With broad sound coverage, versatile system compatibility, and a low-profile design, these speakers are engineered to meet the demands of modern commercial audio installations without compromising on performance or aesthetics.
